VG-DARK Darkness Sensor Buy Now
The VG-DARK is a highly sensitive light sensor, which will saturate with very low levels of light. It is primarily used as a darkness sensor that will trigger a VegeHub WIFI Sensor Hub when there is light. It can be used to detect sunrise or sunset. It can be installed in a cabinet or dark room, and be used to detect when a door has been opened letting in light.
Because it is designed to saturate with low levels of light, it's not recommended for use as a general purpose light sensor. For a linear, general purpose light sensor see our LT150 Light Sensors
VegeHub WiFi Sensor Hub - Applications
- Crop Steering.
- Sunrise or sunset detector.
- Cabinet door detector.
- Dark room alarm.
- Greenhouse Automation.
VegeHub WiFi Sensor Hub - Features
Other Vegetronix Products of Interest
- Linear Light Sensors
- Water Level Sensors
- VegeHub Garden Sensor WiFi Hub
- Soil Moisture Sensors
- Soil Moisture Meter
- Soil Moisture Sensor Relay Boards Boards
- Current loop translator
- Relative Humidity (RH) Sensor
- SDI-12 Protocol Translators
- Data Loggers
- Extension Cable
Pricing and Ordering Info
We ship to nearly EVERY COUNTRY on the planet, directly to you from our factory.
99% of orders ship same day.
| BUY NOW FROM OUR WEBSITE STORE | |||
| Part Number | Description | Price | Purchase |
|---|---|---|---|
| VG-DARK | Darkness sensor. | Buy Now | |
Contact us for volume pricing information.
VG-DARK Darkness Sensor - Specifications
| Power consumption | 4uA at 9V. |
| Supply voltage | 4 to 24V supply |
| Dimensions | See drawing below. |
| Output voltage range. | 0 to 3.0V |
| Operational temperature | -40°C to 85°C |
| Cable Length | 3" (6cm) |
| Enclosure Material | 3D Printed PLA. |

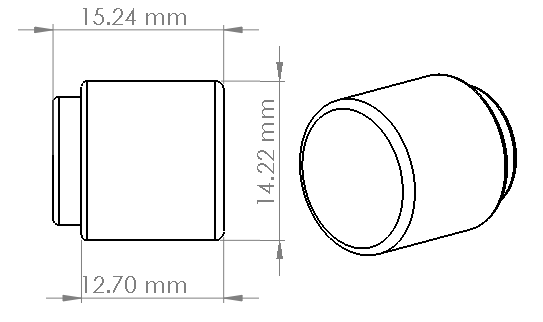

VG-DARK Darkness Sensor - Dimensions
VG-DARK Darkness Sensor Wiring Table
| Wire Color | Description |
|---|---|
| Red | Positive Terminal: 3.5V to 20 VDC. |
| Black | OUT: (Non-Linear: 0 to 3V where 0V is Dark) |
| Bare | Ground |

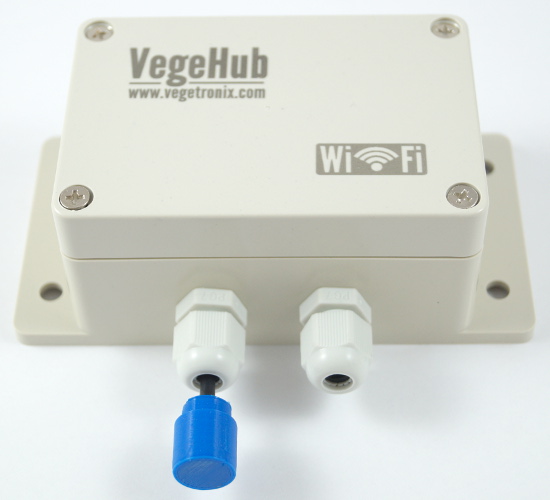

Darkness Sensor with VegeHub. (VegeHub is sold separately.)

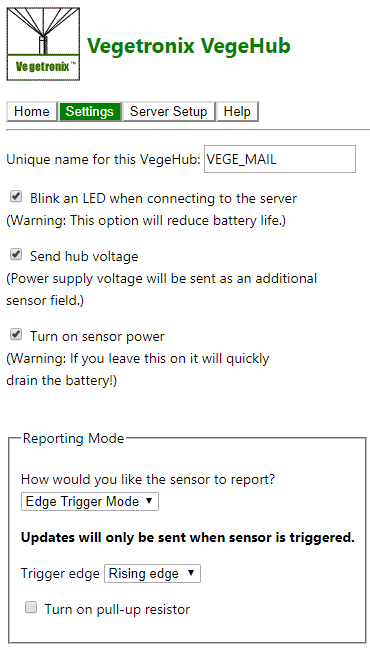

VG-DARK Darkness Sensor - Setup with VegeHub
Use the following VegeHub Settings with the Darkness sensor.
