VH400 - Soil Moisture Sensor Probe

Soil Moisture Sensor Probe Features

Extreme low cost with volume pricing.
Not conductivity based.
Insensitive to salinity.
Probe does not corrode over time.
Rugged design for long term use.
Small size.
Consumes less than 7mA for very low power operation.
Precise measurement.
Measures volumetric water content (VWC) or gravimetric water content (GWC).
Output Voltage is proportional to moisture level.
Wide supply voltage range.
Can be buried and is water proof.
Probe is long and slender for wider use, including smaller potted plants.

Other Vegetronix Products of Interest

Soil Moisture Sensor Probe Pricing and Ordering Info

ORDER INFO
Part Number	Description	Price	Purchase
VH400-2M	Soil Moisture Sensor - 2 meter cable	$39.95
VH400-5M	Soil Moisture Sensor - 5 meter cable	$45.95
VH400-10M	Soil Moisture Sensor - 10 meter cable	$55.95

Soil Moisture Sensor Relay Boards

The quickest way to evaluate if the VH400 series is right for you is to also order some of our sensor relay boards. The relay boards accept input from a single sensor and control a solid state or mechanical relay. The relay contacts can be configured to close when wet, or open when wet. The dry/wet threshold is easily set by an an on boardvariable resistor, which can be tuned with a small screwdriver. With our relay boards, within minutes you'll be using your VH400 soil moisture probe to control, valves, alarms or home automation systems.

Soil Moisture Sensor Probe Specifications

VH400 Sensor
Power consumption	< 13mA
Supply Voltage	3.5V to 20 VDC.
Dimensions	See drawing below.
Power on to Output stable	400 ms
Output Impedance	10K ohms
Operational Temperature	-40ºC to 85ºC
Accuracy at 25°C	2%
Output	0 to 3V related to moisture content
Shell Color	Red
Voltage Output Curves	Curves, Piecewise linear equations

Soil Moisture Sensor Probe Wiring Table

Bare	Ground
Red	POWER: 3.5V to 20 VDC.
Black	OUT: (0 to 3V related to moisture content.)

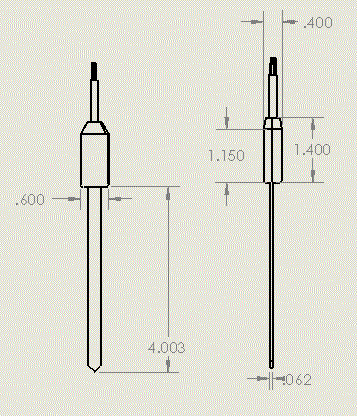

VH400 Soil Moisture Sensor Probe Drawing

VH400 Soil Moisture sensor Drawing

Soil Moisture Sensor Probe Technical Literature

See our Soil Moisture Sensor Probe Application Notes for reference designs and information on how to use the soil moisture probe in larger systems.

How to Get Started with the Soil Moisture Sensor Probe

The best way to get started is to purchase a few low cost soil moisture sensor probes and try them out in your application.

Usage Tips

Bury the sensor at root level. Since the sensor takes an average across the blade, for a precise reading at a particular depth, bury it horizontally such that water will not pool up on the blade.
Many PLC's have a 24V output, which is too high for the VH400 sensor. A resistor voltage divider can be used to drop the voltage in half. To do this, use two 600 ohm 1/4W resistors in series, tied from the 24V to ground. The center of the resistors can be tapped to supply 12V. Note that this is not a very power efficient solution.
